06 Nov 2015 - Batik Air 737-900ER PK-LBO (38731/4463) runway excursion on landing at Yokyakarta, Indonesia.

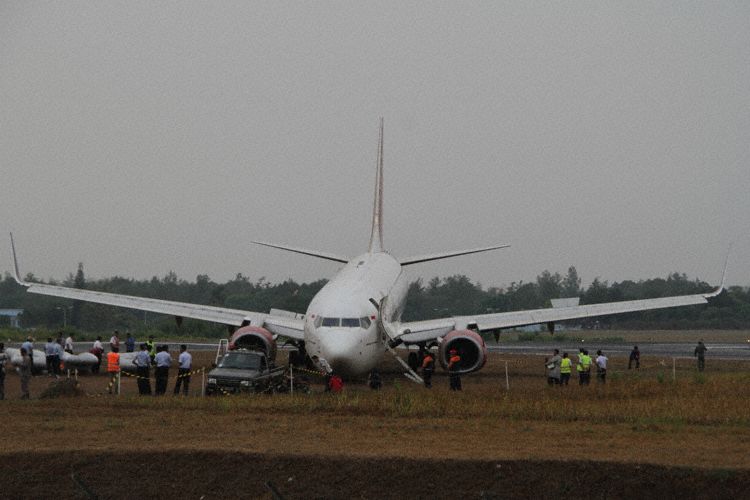

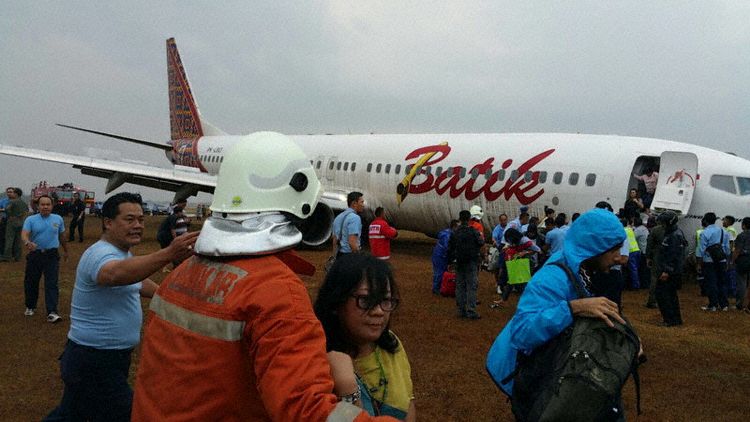

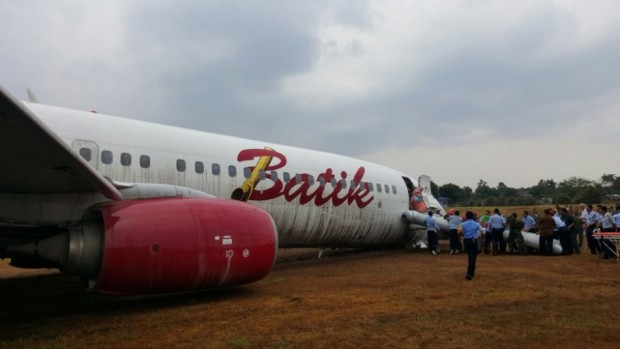

Batik Air flight ID6380 from Jakarta to Yokyakarta (WAHH) with 160 passengers and 5 crew overran the end of Runway 09 (LDA 2200m) by 84m in heavy rain after landing with flap 30 autobrake max and a 6kt tailwind. It floated for 6 seconds, landing 730 meters into the runway. The nose gear collapsed and the passengers were evacuated.with no injuries.

Photo © MetroTV

See more details about the book

All of the information, photographs & schematics from this website and much more is now available in a 374 page printed book or in electronic format.

*** Updated 08 Jun 2017 ***

The 737 Tech Site on Facebook The 737 Tech Site on Twitter The 737 Tech Site on Instagram

On 13 Jun 2016 the Indonesian NTSC released their final report here.

SYNOPSIS

On 6 November 2015, a Boeing 737-900ER registration PK-LBO was being operated by PT. Batik Air Indonesia on a scheduled passenger flight from Soekarno-Hatta International Airport, Jakarta (WIII) to Adisutjipto International Airport, Yogyakarta (WAHH) with flight number BTK 6380. The flight departed from Jakarta at 0713 UTC with total person on board of 168 people and the Pilot in Command (PIC) acted as Pilot Flying (PF) while the Second in Command (SIC) acted as Pilot Monitoring (PM). The flight from departure until commencing approach into Yogyakarta was uneventful and there was no report or record of aircraft system abnormality during the flight.

After received meteorological information from Aerodrome Terminal Information Services (ATIS) the pilot decided to land with configuration flaps 40 and auto-brake 3. While approaching Yogyakarta, the pilots noticed cumulonimbus cloud over Yogyakarta then decided to follow wind shear precaution recommendation to use flaps 30 for landing.

During Instrument Landing System (ILS) approach runway 09, the pilot received information that the runway was wet and decided to change the selection of the auto-brake from three to maximum.

The FDR data indicated that at altitude 10 feet the speed was 159 knots and floated for 6 seconds then touched down at 730 meters from beginning runway 09 on speed 154 knots. The aircraft stopped at about 84 meters from end of runway 09 and passenger evacuation initiated 9 minutes after. No one injured in this accident.

Four conditions affecting the landing distance, specifically the aircraft floated for about 6 seconds and touched down at 427 meter beyond the aim point, after bouncing once; the airspeed at touchdown was 13 knots above Vref, and there was average tailwind of 6 knots; the thrust reversers were stowed at a higher than recommended speed and there was little braking for about 305 meter after the autobrakes were disconnected; and the wet runway conditions resulted in less deceleration.

The investigation concluded the contributing factors to this accident are:

  • The absence of landing distance calculation following landing reconfiguration and the higher speed with no reminder callout might have made the pilots decided to continue landing, and
  • The conditions of the aircraft floated and eventually touched down at the end of the touchdown zone 13 knots above Vref with average 6 knots tailwind, lower brake pressure for 305 meter after the autobrakes were disconnected, and removal of the thrust reverser application at a higher than recommended speed along with medium braking action had extended the landing distance.

The investigation also considered the external factors such as runway condition might have contributed to the reducing of deceleration rate while the brake pressure and thrust reversers were close to maximum.

Following this accident PT. Batik Air Indonesia has issued 24 safety actions which considered relevant to improve safety. In addition, KNKT issued safety recommendations addressed to PT. Batik Air Indonesia, PT. Angkasa Pura Airport branch Adisutjipto International Airport, AirNav Indonesia district office Yogyakarta and the Directorate General of Civil Aviation.
