Main Wheel-Well Components Forward Wall

Home > Aircraft Systems > Wheel-well > Wheel-well quiz

Contents

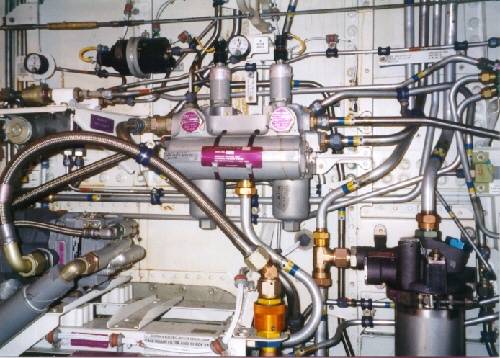

See if you can identify the following components from the photo. Click links to find out where they are and a little information about them.

1. Hyd sys B reservoir pressure gauge - see a photo

2. Hyd sys A reservoir pressure gauge

3. Hyd sys B elec pump

4. Hyd sys B return filter - see a photo

5. Hyd sys B acoustic filter

6. Hyd sys B pressure module

7. Hyd sys B pressure transmitter

Return to main wheel-well page
