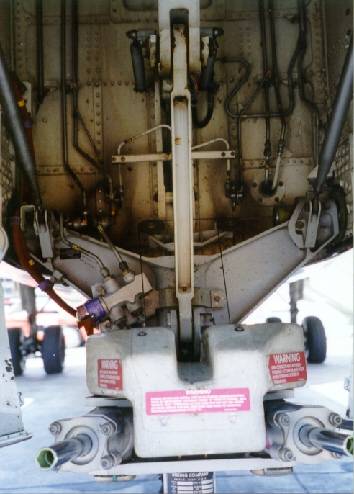

See if you can identify the following components from the photo. Click links to find out where they are and a little information about them.

1. Steering depressurisation valve

2. Steering actuators

3. Door actuation rods

737NG Nose Wheel-well

737 NG Nose Wheel-well

Return to main wheel-well page

See more details about the book

All of the information, photographs & schematics from this website and much more is now available in a 374 page printed book or in electronic format.

*** Updated 23 Nov 2020 ***

The 737 Tech Site on Facebook The 737 Tech Site on Twitter The 737 Tech Site on Instagram

Differences in the NG nose wheel well include:

  1. Only one lamp because no gear downlock viewer is installed.
  2. Redesigned shimmy dampers.
  3. Lever on the RHS to install & remove the steering bypass pin.

737 Nose Wheel-well

737 Classic Nose Wheel-well
