Line drawings of each of the 737 MAX family

Go back to:

Technical specifications

See more details about the book

All of the information, photographs & schematics from this website and much more is now available in a 374 page printed book or in electronic format.

*** Updated 23 Nov 2020 ***

The 737 Tech Site on Facebook The 737 Tech Site on Twitter The 737 Tech Site on Instagram The 737 Tech Site on Instagram

Front

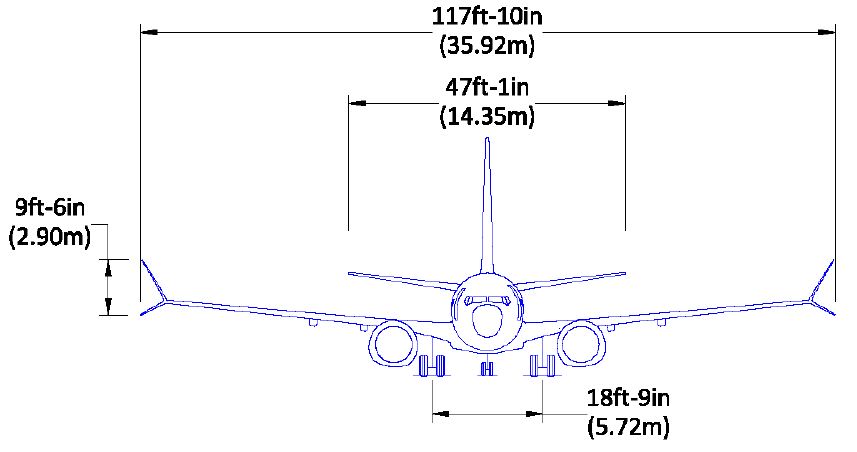

737 MAX Front view

Side views

MAX-7 side view drawing

MAX-8 side view drawing

MAX-200 side view drawing

MAX-9 side view drawing

MAX-10 side view drawing
