B737-200 Adv Study Notes by Anton Jordaan.
See more details about the book

All of the information, photographs & schematics from this website and much more is now available in a 374 page printed book or in electronic format.

*** Updated 05 Aug 2023 ***

The 737 Tech Site on Facebook The 737 Tech Site on Twitter The 737 Tech Site on Instagram

JT8D-15A ENGINES

  • Accessory Drive Gearbox:
  • Oil pump

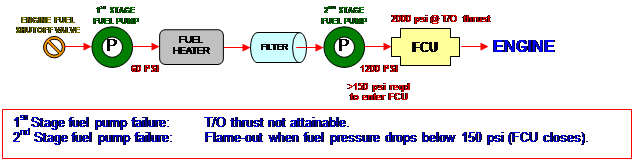

  • Fuel pumps
  • CSD and generator
  • Starter
  • Tachometers
  • Hydraulic pump



  • 6 x PT7 probes and 8 x EGT probes in the engine tailpipe.
  • The engine uses a dry sump oil system feeding 7 main bearings.
  • Oil tank capacity = 4 USG (3 USG min for dispatch).
  • Using fuel heat causes an oil temp rise.






  • High oil pressure (>55 psi) indicates possible oil press regulator failure; requires engine shut-down.

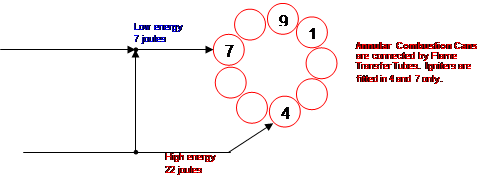

  • 9 fuel atomizers per combustion can.
  • Dry motoring limits: 2 mins on 5 mins off.
