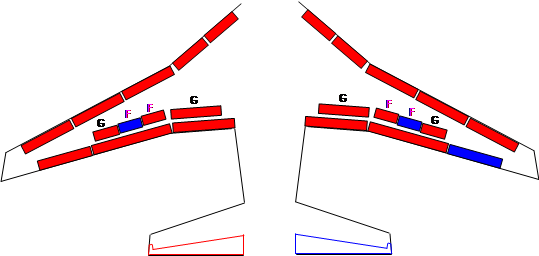

B737-200A SPOILERS



  • GRD SPOILERS :          cannot be isolated by any switch selection.

are deactivated in-flight (grd spoiler shut-off valve mechanically closed by the RH main wheel strut).

4 & 5 deploy to 60° on the ground

1 & 8 deploy to 40° on the ground












GRD SPOILER deployment events:

60 kts wheel spin-up

Speed brake lever moves to up position & Flt Spoilers extend to 25°.

RH Strut compression

Grd Spoiler Shut-off Valve mechanically opens, extending the Grd Spoilers.

If the 60 kts spin-up is not attained within 4 seconds of touch-down

The Speed Brake lever moves to the UP position and all spoiler panels deploy.



  • FLIGHT SPOILERS:      2,3,6 & 7 deploy to 25° in-flight and 40° on the ground.
  • If FLIGHT SPOILERS are selected beyond the FLIGHT DETENT in flight, a blow-down capability will prevent the spoilers from moving excessively past 25°.
